Cast Iron Circular Flange Rotary Valve

Cast Iron Circular Flange Rotary Valve

Cast Iron Circular Flange Rotary Valve for circular flange feeding for pneumatic conveying systems. Built for stable powder discharge, airlock feeding and pneumatic conveying systems.

Product Visuals & Application Scenes

High-contrast industrial presentation aligned with the FUWEI homepage style.

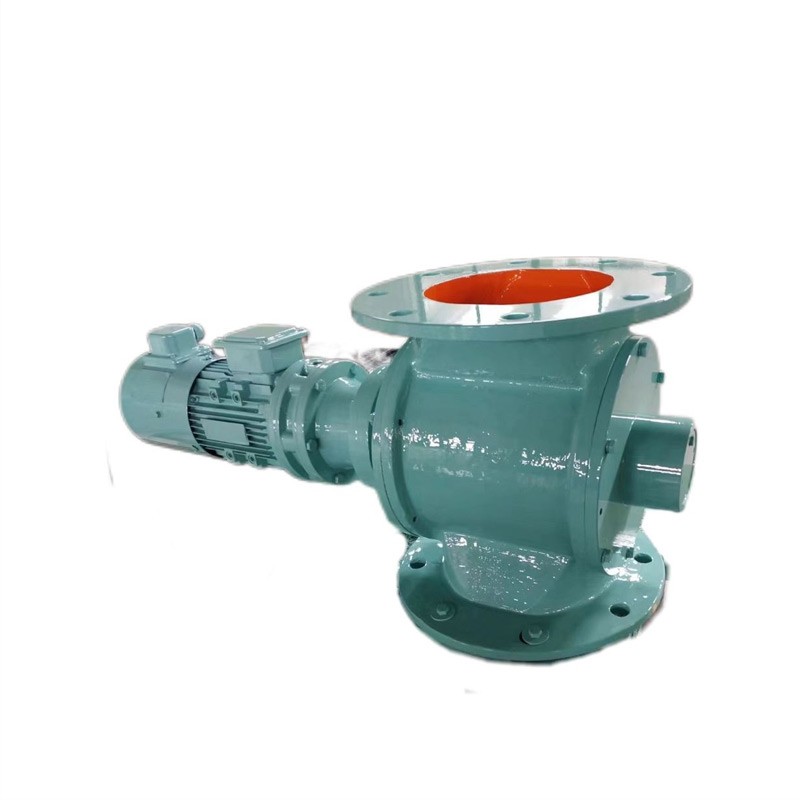

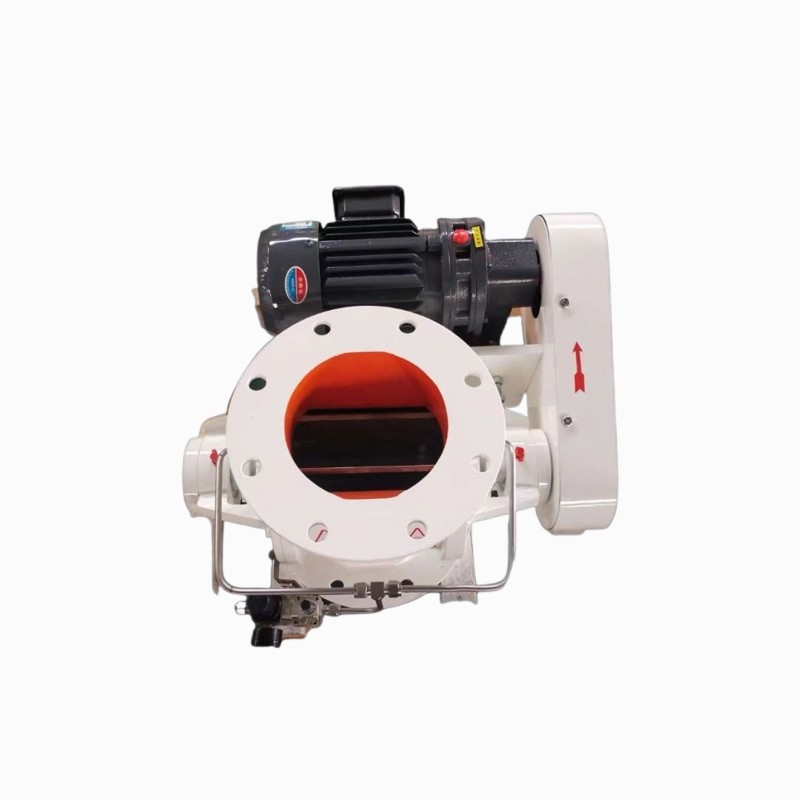

Cast Iron Circular Flange Rotary Valve Product Detail

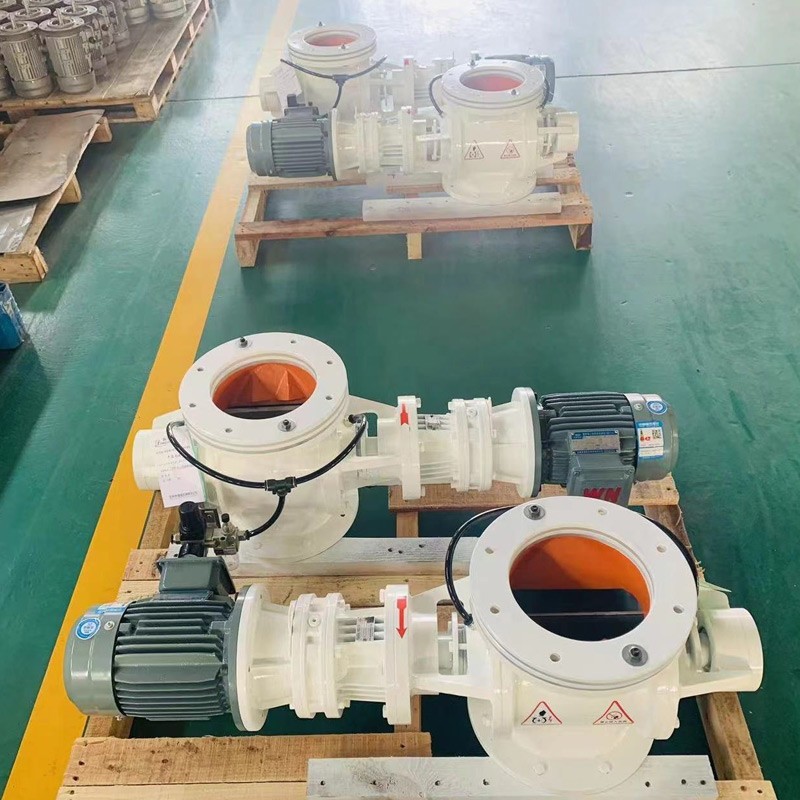

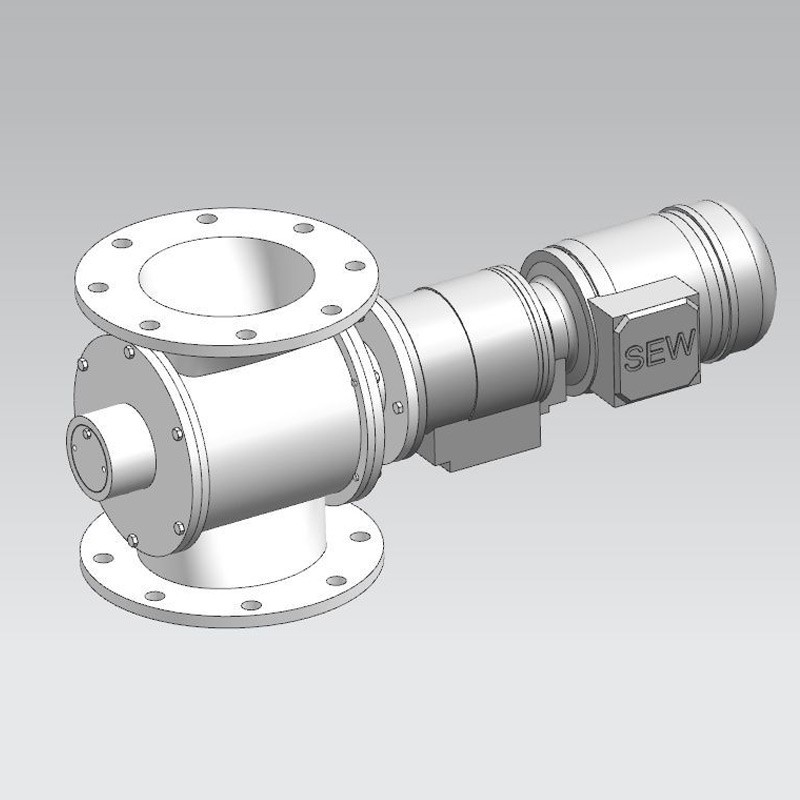

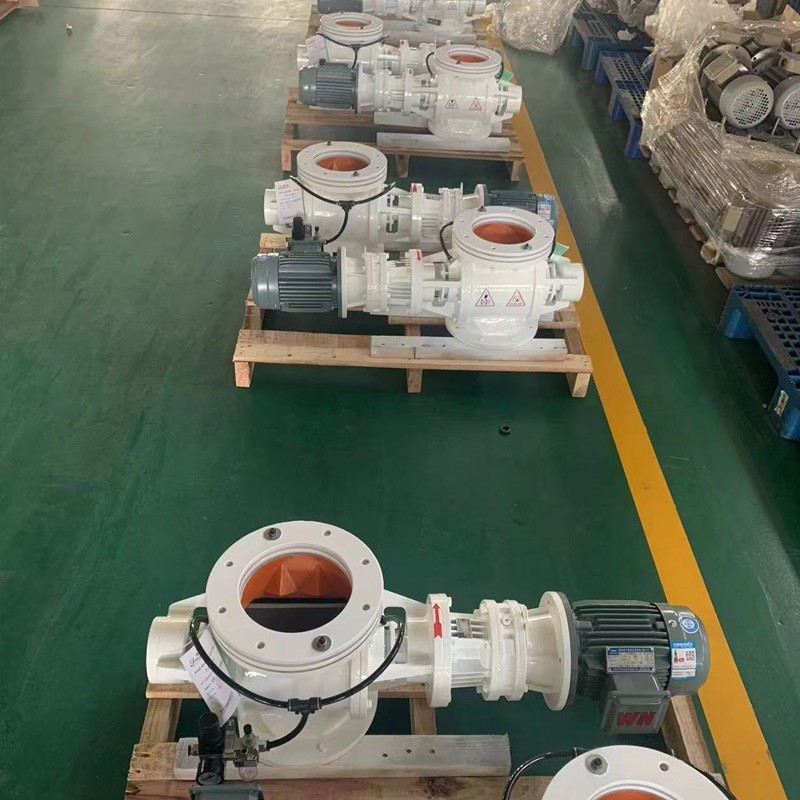

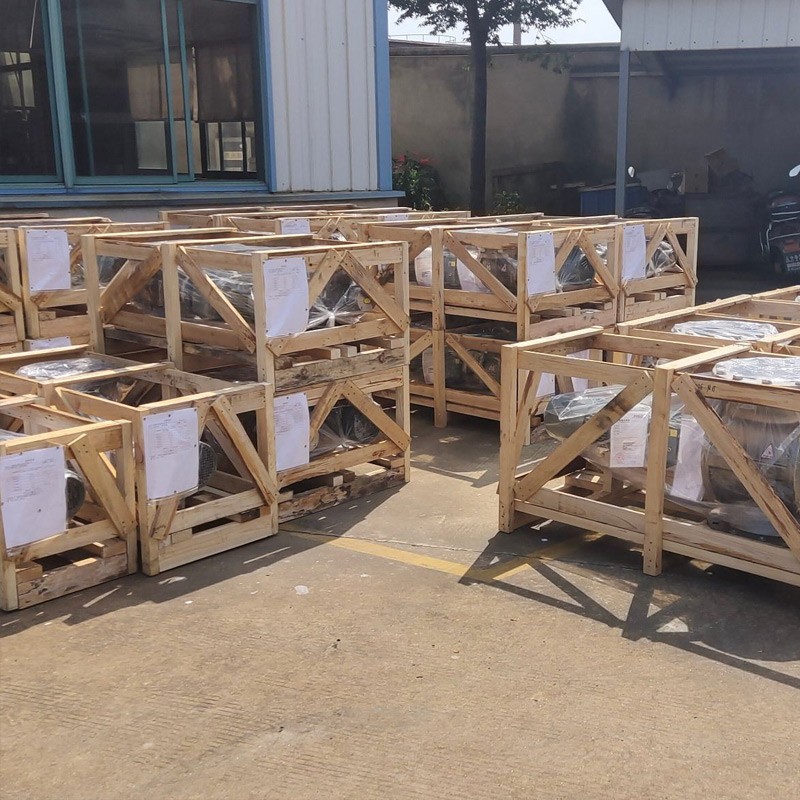

Cast Iron Circular Flange Rotary Valve Application Scene

Why choose this model

Stable discharge: continuous and quantitative powder or granular material feeding.

Airlock performance: designed for silo unloading, dust collection and conveying lines.

Chemical & Pharmaceutical Feed & Pet Food Food Processing New Energy Plastics Power & Construction

Custom material: cast iron with sealing and surface treatment options.

Typical applications

Cement and building materials
Chemical powder and new materials
Grain, feed and food processing
Dust collection and silo discharge
Positive pressure or gravity conveying systems

Selection parameter table

Volume/rotation	Motor kW	Speed r/min	Temp C	Weight kg	A	B	C	A1	B1	C1	H	L	Hole
2 L/rev	0.75	24	280	75	240	200	150	240x240	200	150x150	240	850	8-phi11
4 L/rev	0.75	24	280	105	280	240	180	270x270	230	180x180	280	900	8-phi11
6 L/rev	0.75	24	280	110	300	260	200	290x290	250	200x200	300	930	8-phi11
8 L/rev	0.75	24	280	125	320	280	220	310x310	270	220x220	320	950	8-phi11
10 L/rev	1.1	24	280	135	340	300	240	330x330	290	240x240	340	1000	8-phi13
12 L/rev	1.1	24	280	140	360	320	260	350x350	310	260x260	360	1030	8-phi17
14 L/rev	1.1	24	280	160	380	340	280	370x370	330	280x280	380	1050	8-phi17
16 L/rev	1.1	24	280	180	400	360	300	400x400	350	300x300	400	1080	8-phi17
18 L/rev	1.5	24	280	195	420	380	320	420x420	370	320x320	420	1100	8-phi17
20 L/rev	1.5	24	280	210	440	400	340	440x440	390	340x340	440	1150	8-phi17
26 L/rev	2.2	24	280	310	500	460	400	510x510	450	400x400	520	1300	12-phi17
30 L/rev	3	24	280	350	560	500	440	550x550	495	440x440	550	1350	12-phi17
40 L/rev	3	24	280	450	620	558	500	620x620	558	500x500	620	1500	12-phi17
50 L/rev	3	24	280	500	650	600	540	650x650	600	540x540	650	1600	12-phi17

DN series catalog reference: 2-50 L/rev, 24 r/min, 0.75-3 kW motor options.

Selection information to confirm

Material name, particle size, bulk density, moisture and temperature.
Required capacity, pressure difference, conveying method and installation direction.
Body material, seal material, flange standard, actuator type and control requirement.
Special requirements such as wear resistance, high temperature, explosion-proof motor or inner coating.

Rotary Valve Solutions by Industry

Explore material-handling requirements and recommended FUWEI rotary valve configurations for your industry.

Quick quote

Send your requirement to FUWEI

Tell us your material, capacity, pressure, temperature and flange standard. Our engineer will help select the suitable model.

Quick Disassembly and Cleaning Rotary Discharge Valve

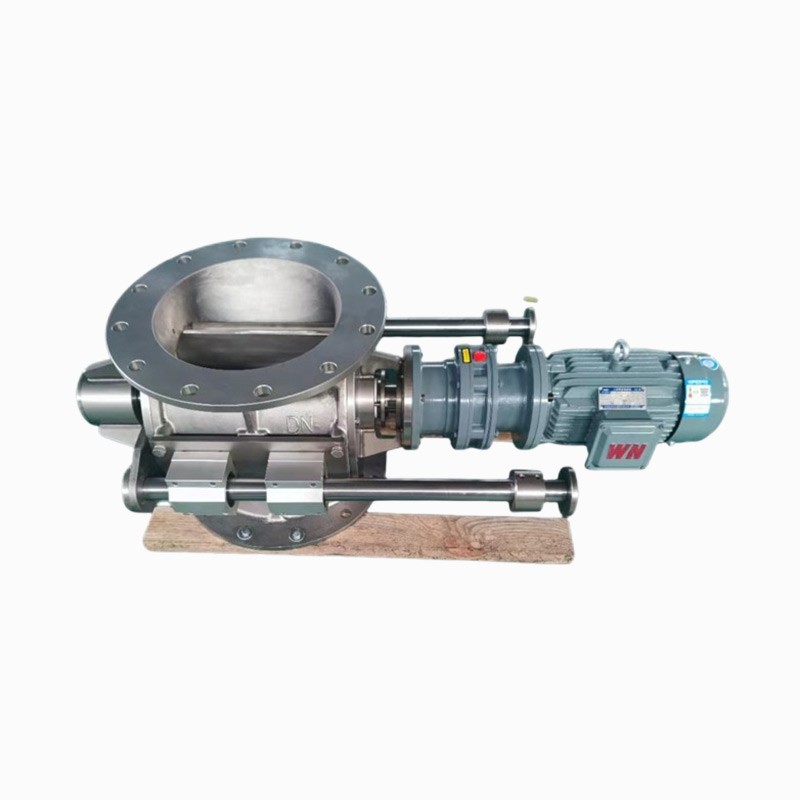

Quick Disassembly Rotary Valve

Quick Disassembly and Cleaning Rotary Discharge Valve

Quick Disassembly Rotary Discharge Valve

Quick Disassembly Rotary Discharge Valve for easy cleaning, inspection and maintenance. Built for stable powder discharge, airlock feeding and pneumatic conveying systems.

Product Visuals & Application Scenes

High-contrast industrial presentation aligned with the FUWEI homepage style.

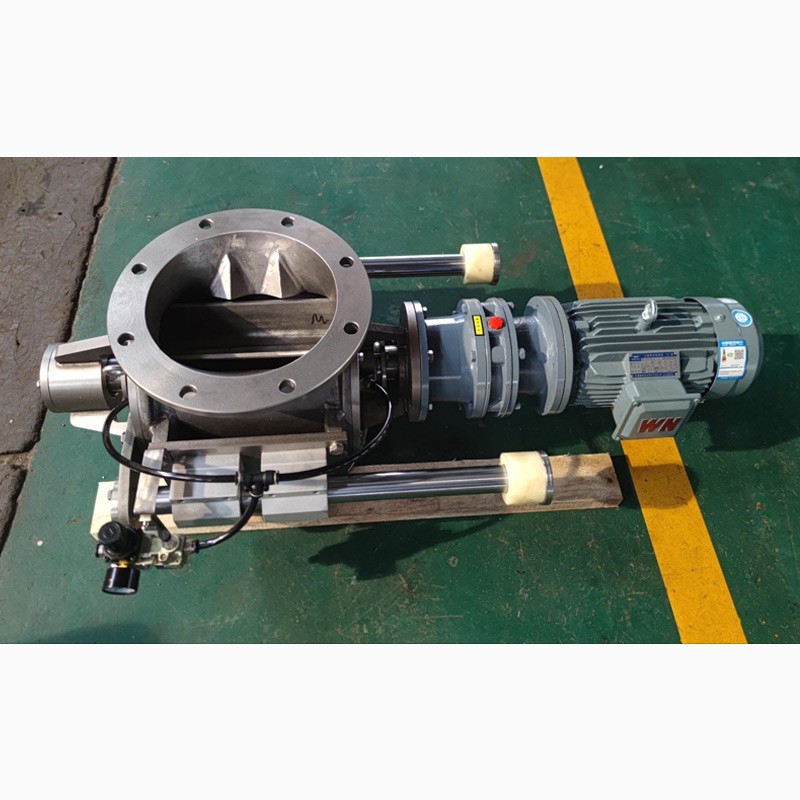

Quick Disassembly Rotary Discharge Valve Product Detail

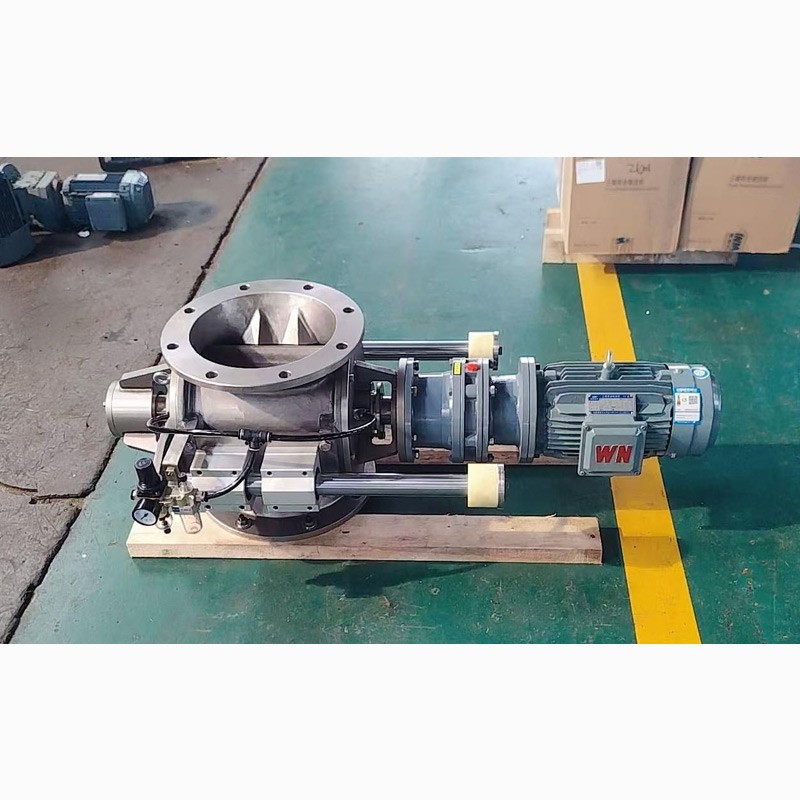

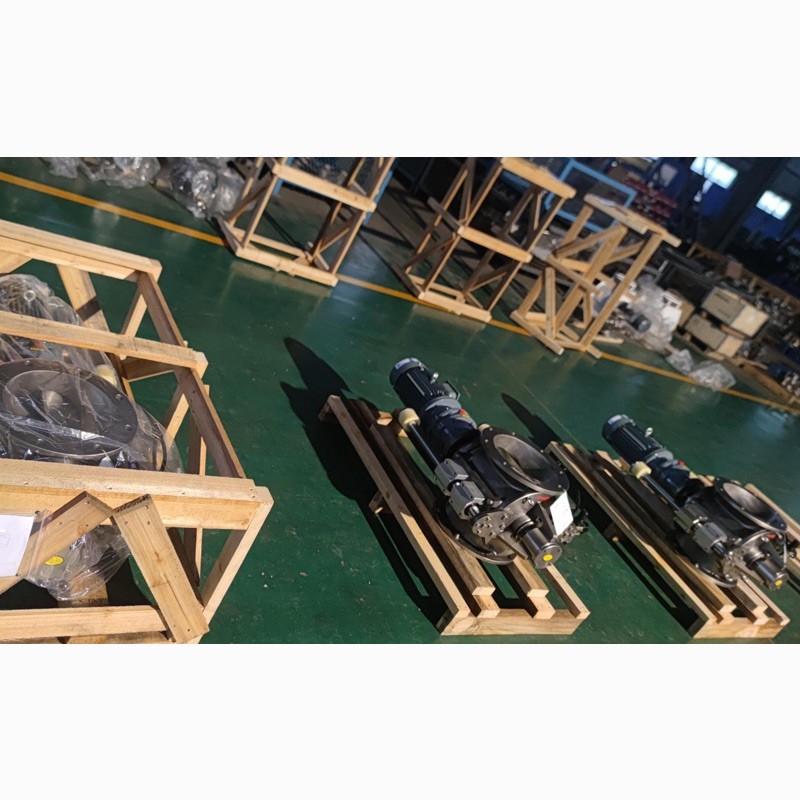

Quick Disassembly Rotary Discharge Valve Application Scene

Why choose this model

Stable discharge: continuous and quantitative powder or granular material feeding.

Airlock performance: designed for silo unloading, dust collection and conveying lines.

Chemical & Pharmaceutical Feed & Pet Food Food Processing New Energy Plastics Power & Construction

Custom material: customized material with sealing and surface treatment options.

Typical applications

Cement and building materials
Chemical powder and new materials
Grain, feed and food processing
Dust collection and silo discharge
Positive pressure or gravity conveying systems

Selection parameter table

Selection item	Reference
Series	Quick Disassembly Type
Material	customized material
Application	easy cleaning, inspection and maintenance
Custom options	Material, flange, rotor clearance, sealing, coating, drive and surface treatment

The catalog table for this special configuration is application-dependent. FUWEI can confirm exact dimensions after material and process data are supplied.

Selection information to confirm

Material name, particle size, bulk density, moisture and temperature.
Required capacity, pressure difference, conveying method and installation direction.
Body material, seal material, flange standard, actuator type and control requirement.
Special requirements such as wear resistance, high temperature, explosion-proof motor or inner coating.

Rotary Valve Solutions by Industry

Explore material-handling requirements and recommended FUWEI rotary valve configurations for your industry.

Quick quote

Send your requirement to FUWEI

Tell us your material, capacity, pressure, temperature and flange standard. Our engineer will help select the suitable model.

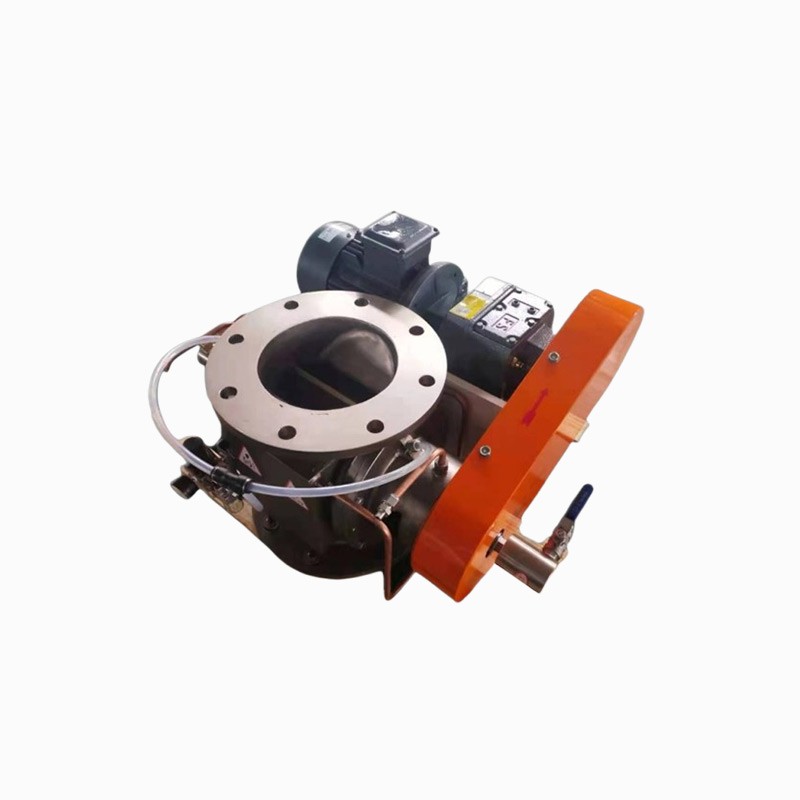

High Temperature Cooling Material Conveying Rotary Control Valve Accept Customization

High Temperature Rotary Airlock Valve

High Temperature Cooling Material Conveying Rotary Control Valve Accept Customization

High Temperature Cooling Rotary Airlock Valve

High Temperature Cooling Rotary Airlock Valve for hot material discharge and drying process feeding. Built for stable powder discharge, airlock feeding and pneumatic conveying systems.

Product Visuals & Application Scenes

High-contrast industrial presentation aligned with the FUWEI homepage style.

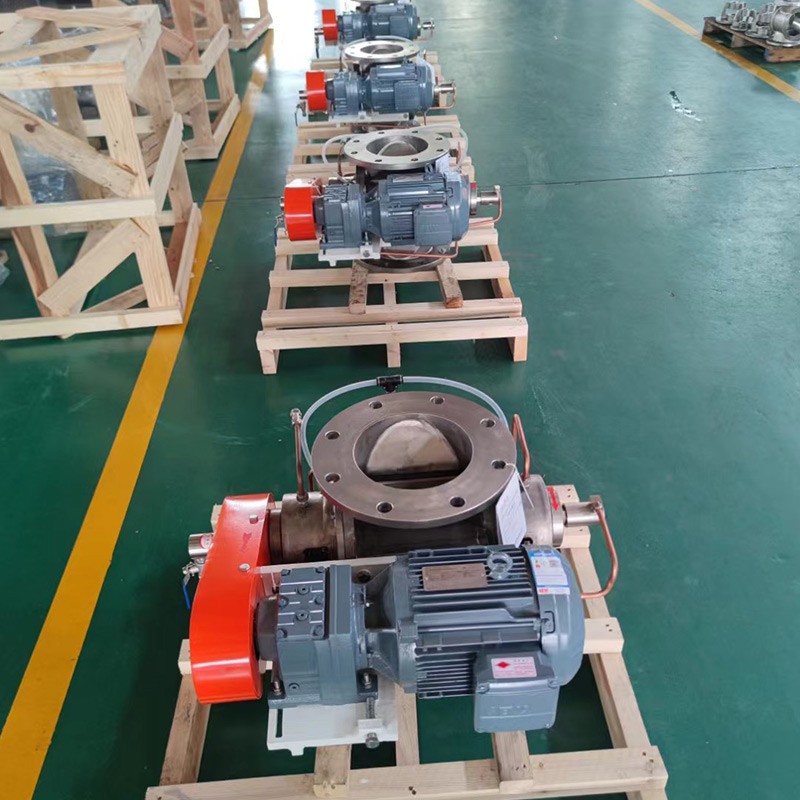

High Temperature Cooling Rotary Airlock Valve Product Detail

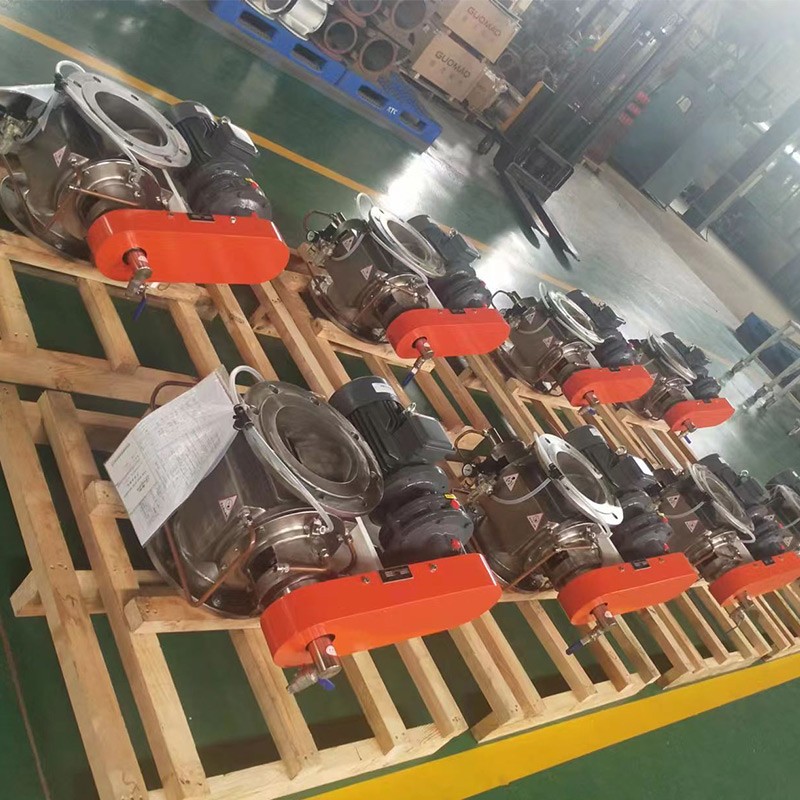

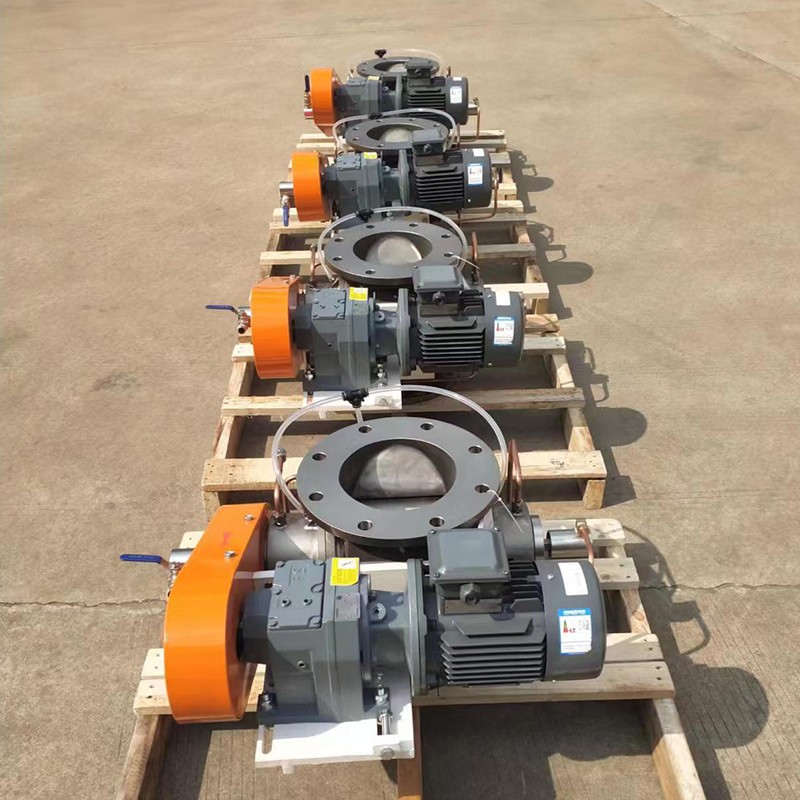

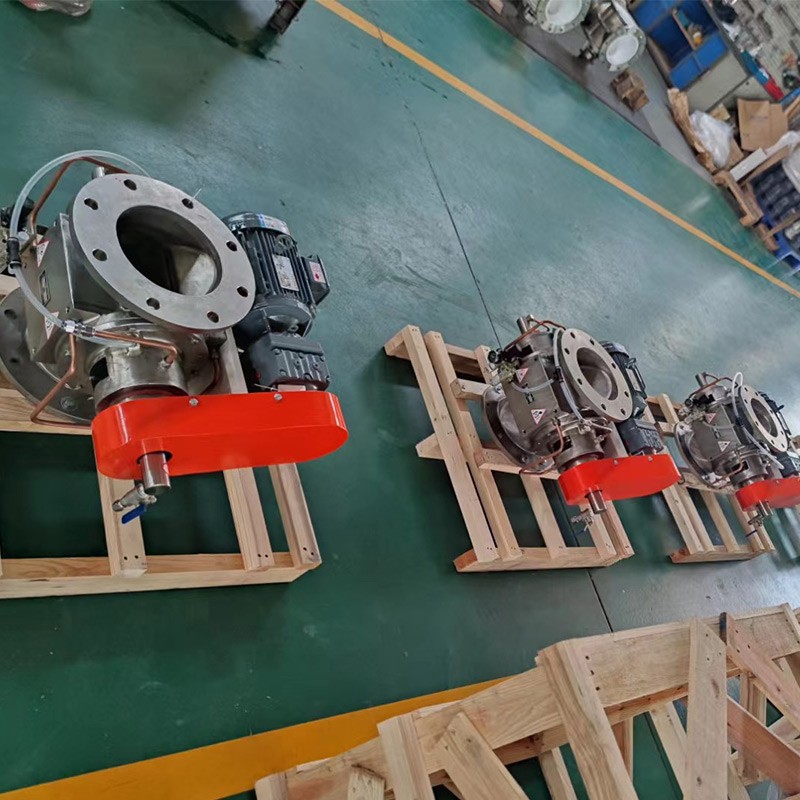

High Temperature Cooling Rotary Airlock Valve Application Scene

Why choose this model

Stable discharge: continuous and quantitative powder or granular material feeding.

Airlock performance: designed for silo unloading, dust collection and conveying lines.

Chemical & Pharmaceutical Feed & Pet Food Food Processing New Energy Plastics Power & Construction

Custom material: custom material according to temperature and medium with sealing and surface treatment options.

Typical applications

Cement and building materials
Chemical powder and new materials
Grain, feed and food processing
Dust collection and silo discharge
Positive pressure or gravity conveying systems

Selection parameter table

Selection item	Reference
Series	High Temperature Type
Material	custom material according to temperature and medium
Application	hot material discharge and drying process feeding
Custom options	Material, flange, rotor clearance, sealing, coating, drive and surface treatment

The catalog table for this special configuration is application-dependent. FUWEI can confirm exact dimensions after material and process data are supplied.

Selection information to confirm

Material name, particle size, bulk density, moisture and temperature.
Required capacity, pressure difference, conveying method and installation direction.
Body material, seal material, flange standard, actuator type and control requirement.
Special requirements such as wear resistance, high temperature, explosion-proof motor or inner coating.

Rotary Valve Solutions by Industry

Explore material-handling requirements and recommended FUWEI rotary valve configurations for your industry.

Quick quote

Send your requirement to FUWEI

Tell us your material, capacity, pressure, temperature and flange standard. Our engineer will help select the suitable model.

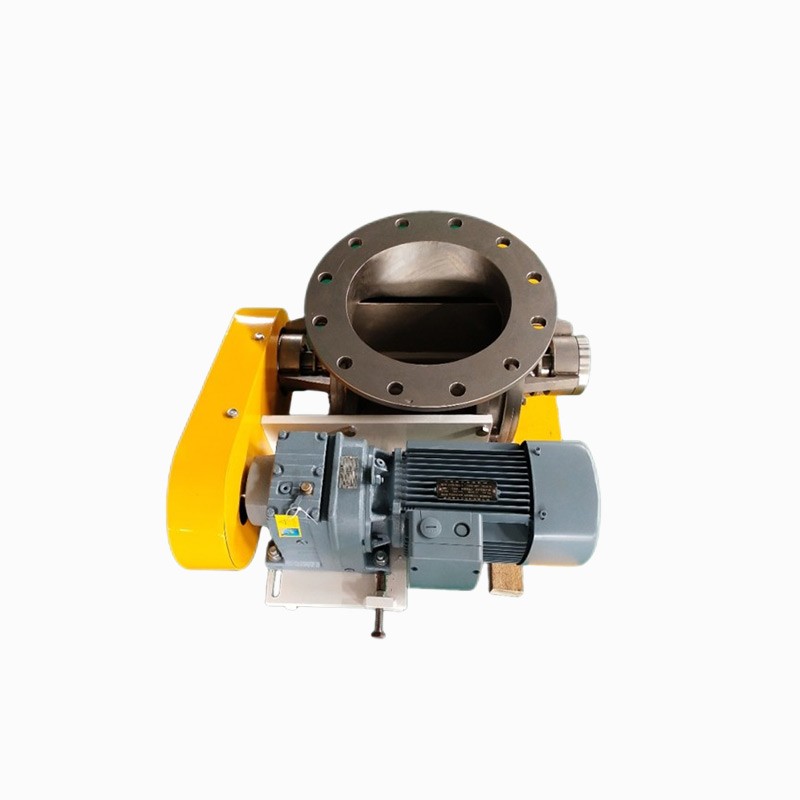

Circular Flange Flow Control Uniform Discharge Stainless Steel Valve Accept Customization

ZGFWF / DN Series Rotary Airlock Valve

Circular Flange Flow Control Uniform Discharge Stainless Steel Valve Accept Customization

Stainless Steel Circular Flange Rotary Valve

Stainless Steel Circular Flange Rotary Valve for circular flange feeding for pneumatic conveying systems. Built for stable powder discharge, airlock feeding and pneumatic conveying systems.

Product Visuals & Application Scenes

High-contrast industrial presentation aligned with the FUWEI homepage style.

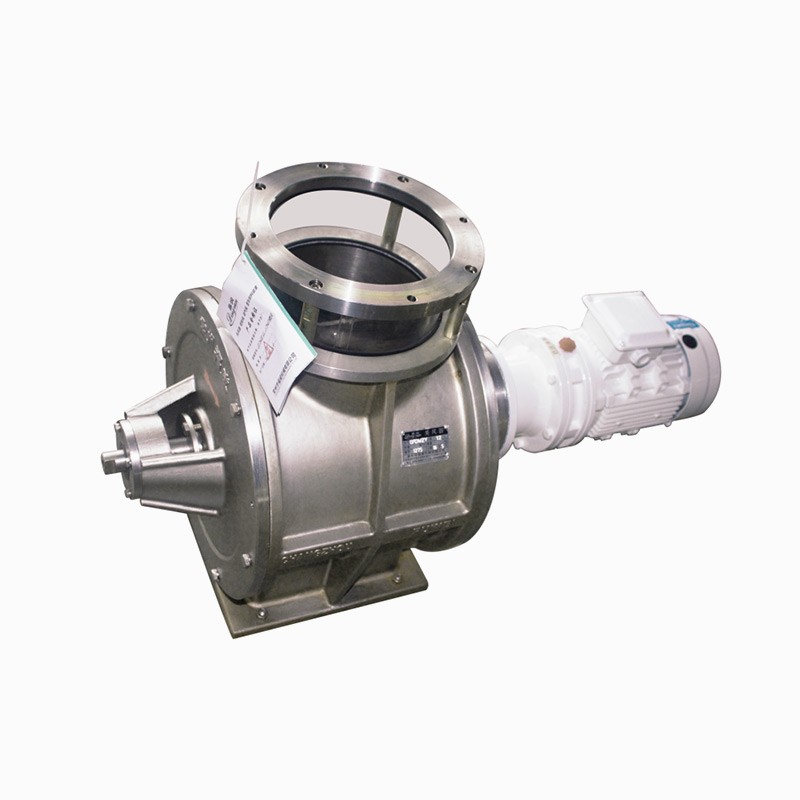

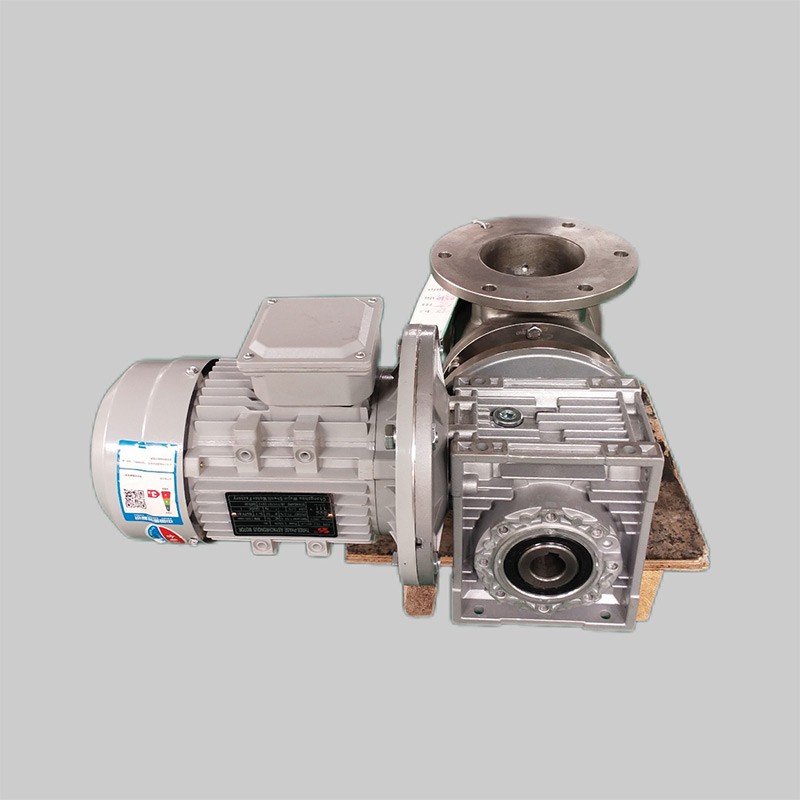

Stainless Steel Circular Flange Rotary Valve Product Detail

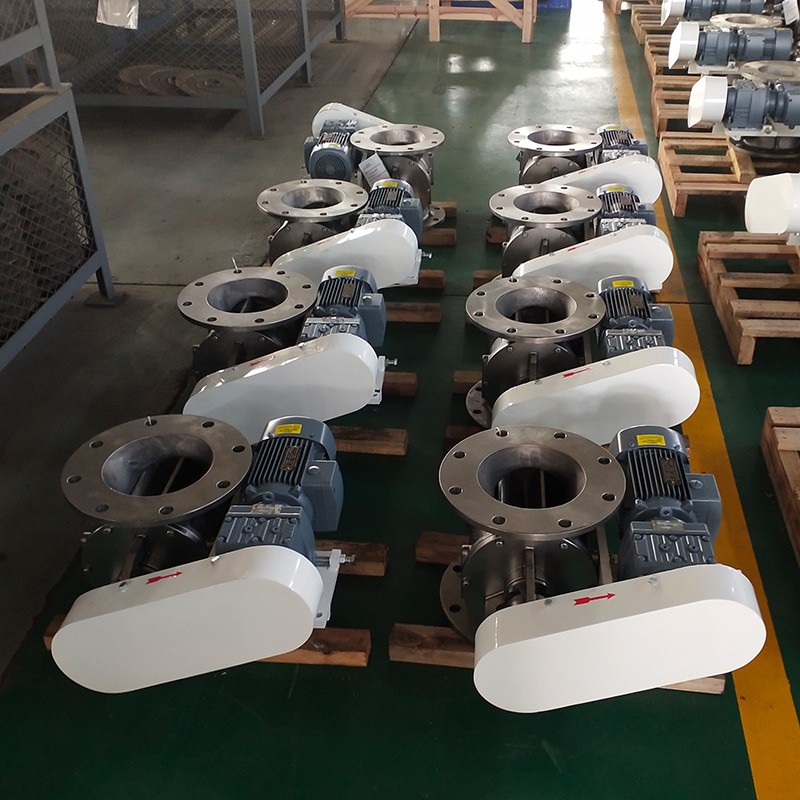

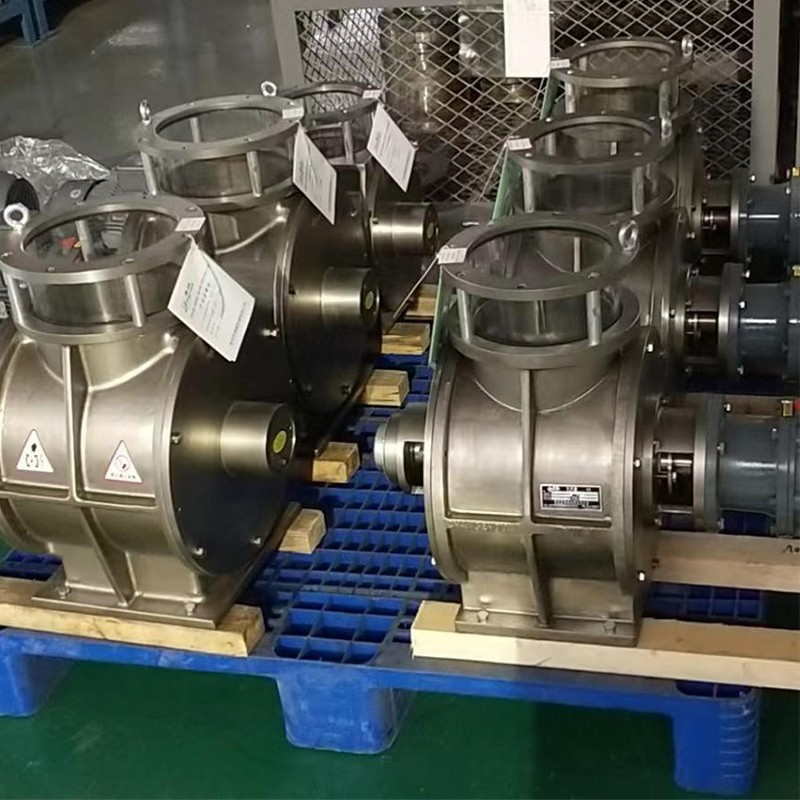

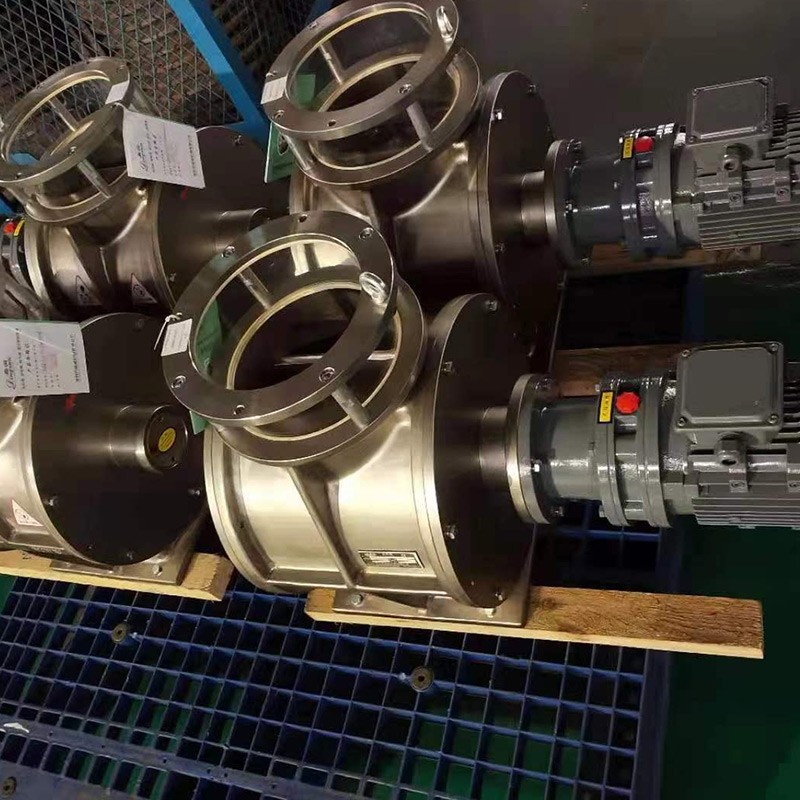

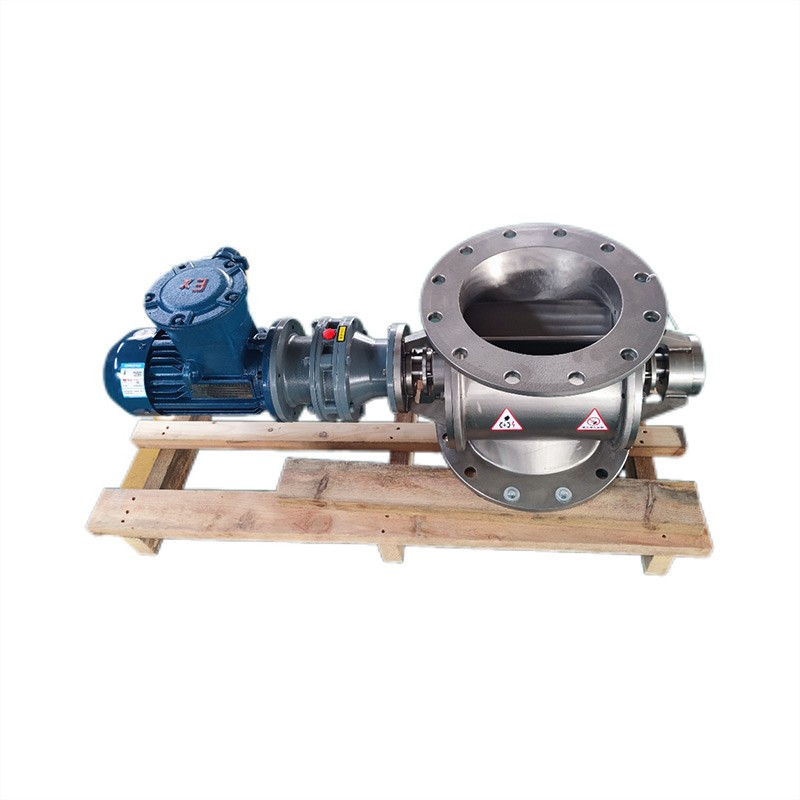

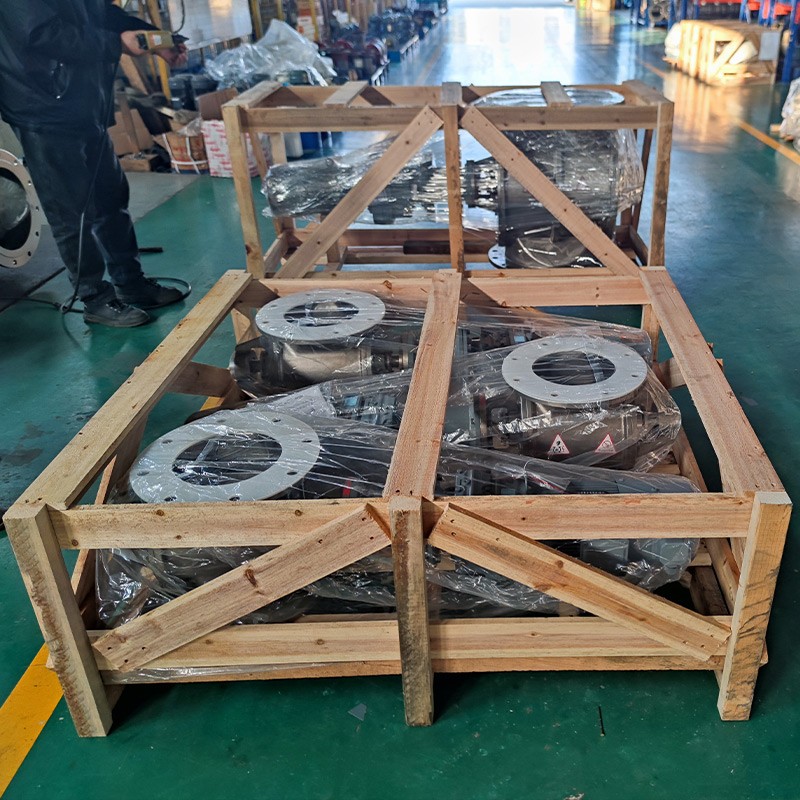

Stainless Steel Circular Flange Rotary Valve Application Scene

Why choose this model

Stable discharge: continuous and quantitative powder or granular material feeding.

Airlock performance: designed for silo unloading, dust collection and conveying lines.

Chemical & Pharmaceutical Feed & Pet Food Food Processing New Energy Plastics Power & Construction

Custom material: stainless steel with sealing and surface treatment options.

Typical applications

Cement and building materials
Chemical powder and new materials
Grain, feed and food processing
Dust collection and silo discharge
Positive pressure or gravity conveying systems

Selection parameter table

Volume/rotation	Motor kW	Speed r/min	Temp C	Weight kg	A	B	C	A1	B1	C1	H	L	Hole
2 L/rev	0.75	24	280	75	240	200	150	240x240	200	150x150	240	850	8-phi11
4 L/rev	0.75	24	280	105	280	240	180	270x270	230	180x180	280	900	8-phi11
6 L/rev	0.75	24	280	110	300	260	200	290x290	250	200x200	300	930	8-phi11
8 L/rev	0.75	24	280	125	320	280	220	310x310	270	220x220	320	950	8-phi11
10 L/rev	1.1	24	280	135	340	300	240	330x330	290	240x240	340	1000	8-phi13
12 L/rev	1.1	24	280	140	360	320	260	350x350	310	260x260	360	1030	8-phi17
14 L/rev	1.1	24	280	160	380	340	280	370x370	330	280x280	380	1050	8-phi17
16 L/rev	1.1	24	280	180	400	360	300	400x400	350	300x300	400	1080	8-phi17
18 L/rev	1.5	24	280	195	420	380	320	420x420	370	320x320	420	1100	8-phi17
20 L/rev	1.5	24	280	210	440	400	340	440x440	390	340x340	440	1150	8-phi17
26 L/rev	2.2	24	280	310	500	460	400	510x510	450	400x400	520	1300	12-phi17
30 L/rev	3	24	280	350	560	500	440	550x550	495	440x440	550	1350	12-phi17
40 L/rev	3	24	280	450	620	558	500	620x620	558	500x500	620	1500	12-phi17
50 L/rev	3	24	280	500	650	600	540	650x650	600	540x540	650	1600	12-phi17

DN series catalog reference: 2-50 L/rev, 24 r/min, 0.75-3 kW motor options.

Selection information to confirm

Material name, particle size, bulk density, moisture and temperature.
Required capacity, pressure difference, conveying method and installation direction.
Body material, seal material, flange standard, actuator type and control requirement.
Special requirements such as wear resistance, high temperature, explosion-proof motor or inner coating.

Rotary Valve Solutions by Industry

Explore material-handling requirements and recommended FUWEI rotary valve configurations for your industry.

Quick quote

Send your requirement to FUWEI

Tell us your material, capacity, pressure, temperature and flange standard. Our engineer will help select the suitable model.

Square Flange Flow Control Uniform Discharge Cast Iron Valve Accept Customization

ZGFWE Square Flange Rotary Valve

Square Flange Flow Control Uniform Discharge Cast Iron Valve Accept Customization

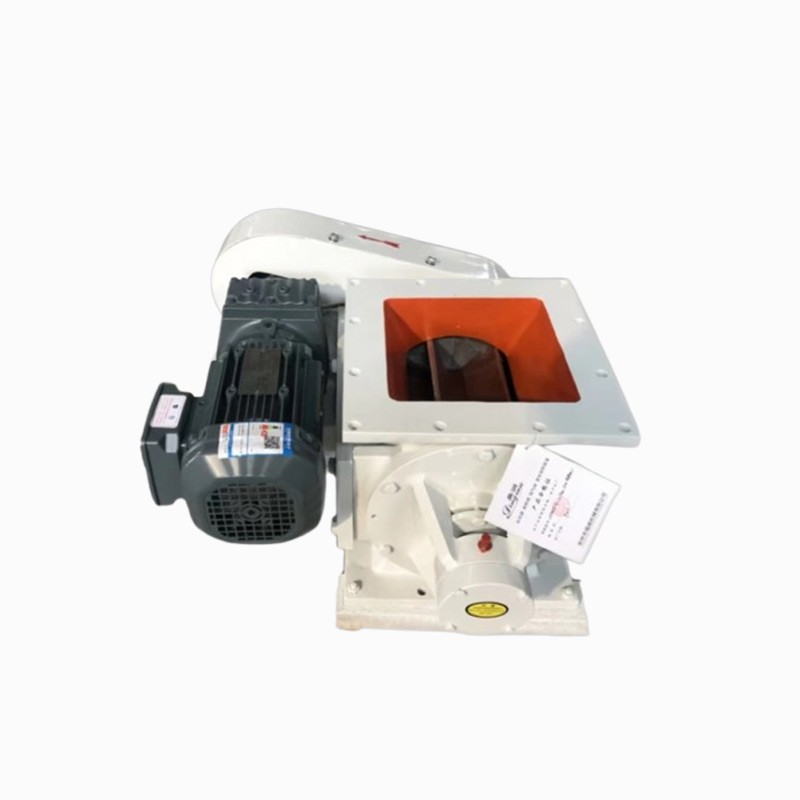

Cast Iron Square Flange Rotary Valve

Cast Iron Square Flange Rotary Valve for square flange connection and stable bulk material feeding. Built for stable powder discharge, airlock feeding and pneumatic conveying systems.

Product Visuals & Application Scenes

High-contrast industrial presentation aligned with the FUWEI homepage style.

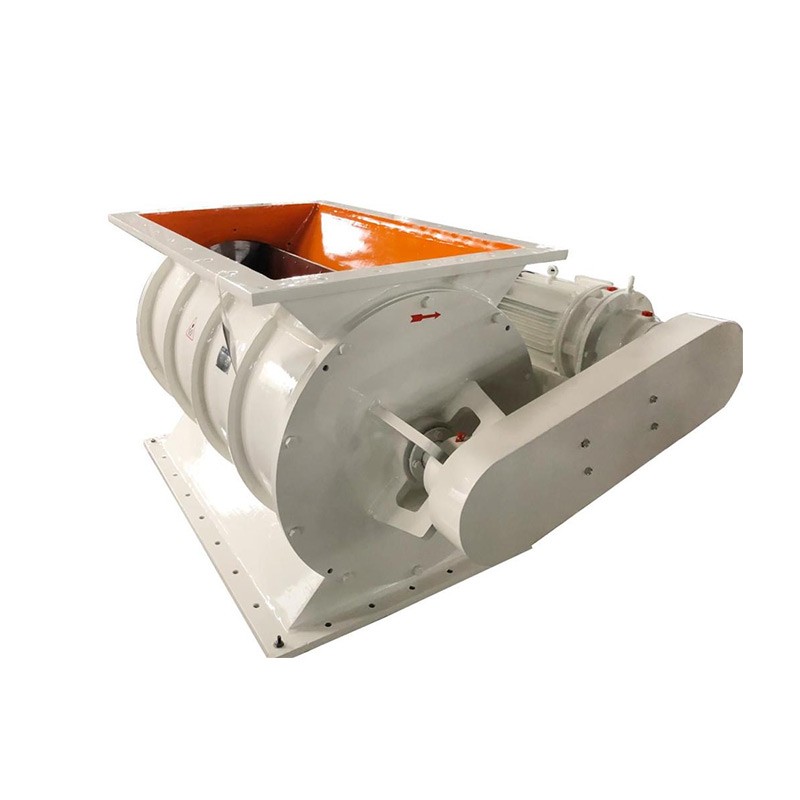

Cast Iron Square Flange Rotary Valve Product Detail

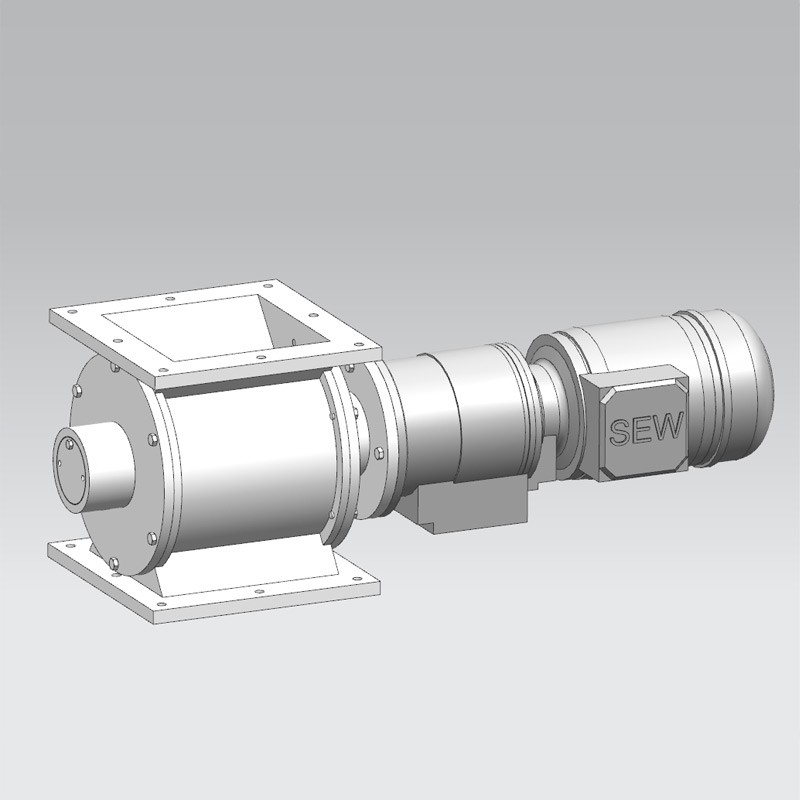

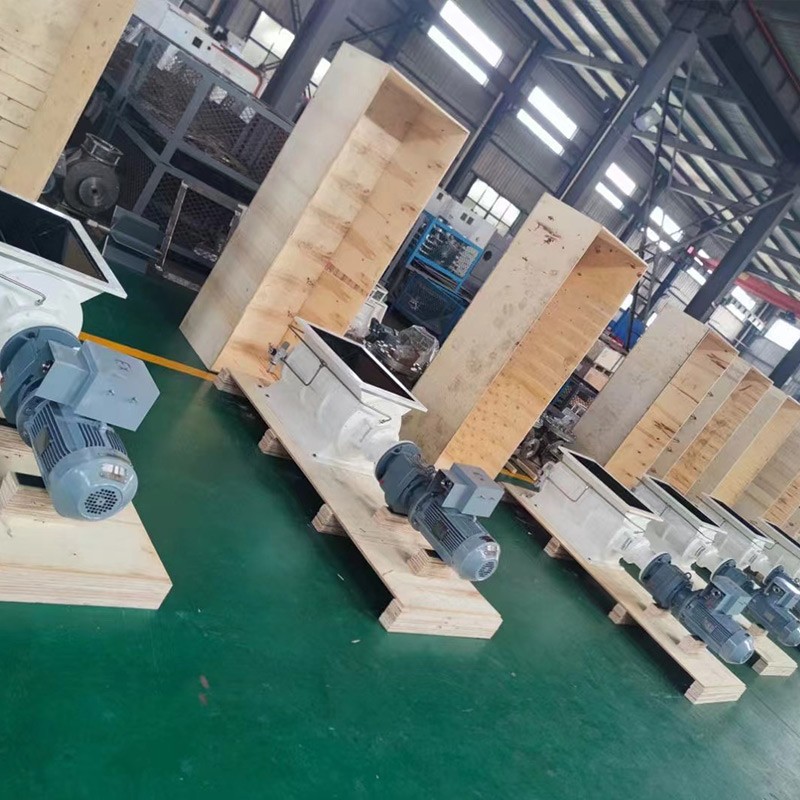

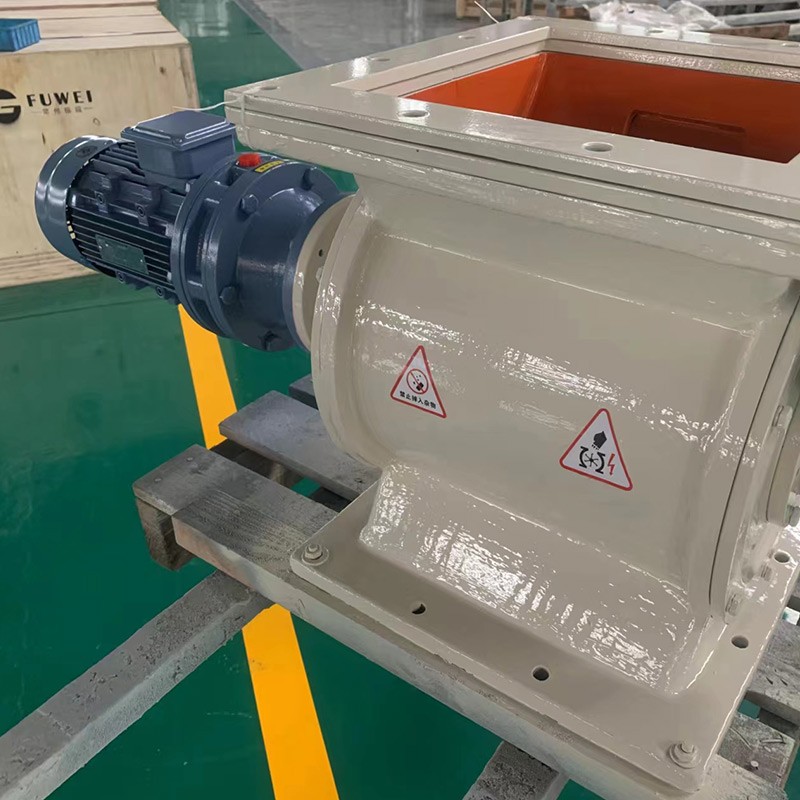

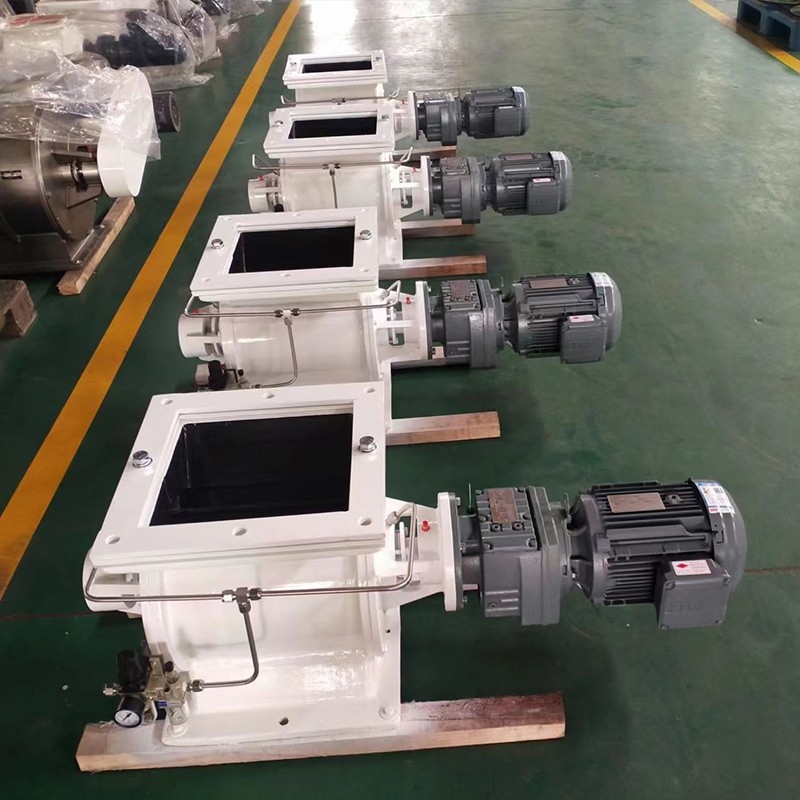

Cast Iron Square Flange Rotary Valve Application Scene

Why choose this model

Stable discharge: continuous and quantitative powder or granular material feeding.

Airlock performance: designed for silo unloading, dust collection and conveying lines.

Chemical & Pharmaceutical Feed & Pet Food Food Processing New Energy Plastics Power & Construction

Custom material: cast iron with sealing and surface treatment options.

Typical applications

Cement and building materials
Chemical powder and new materials
Grain, feed and food processing
Dust collection and silo discharge
Positive pressure or gravity conveying systems

Selection parameter table

Volume/rotation	Motor kW	Speed r/min	Temp C	Weight kg	A	B	C	A1	B1	C1	H	L	Hole
2 L/rev	0.75	24	280	75	240	200	150	240x240	200	150x150	240	850	8-phi11
4 L/rev	0.75	24	280	105	280	240	180	270x270	230	180x180	280	900	8-phi11
6 L/rev	0.75	24	280	110	300	260	200	290x290	250	200x200	300	930	8-phi11
8 L/rev	0.75	24	280	125	320	280	220	310x310	270	220x220	320	950	8-phi11
10 L/rev	1.1	24	280	135	340	300	240	330x330	290	240x240	340	1000	8-phi13
12 L/rev	1.1	24	280	140	360	320	260	350x350	310	260x260	360	1030	8-phi17
14 L/rev	1.1	24	280	160	380	340	280	370x370	330	280x280	380	1050	8-phi17
16 L/rev	1.1	24	280	180	400	360	300	400x400	350	300x300	400	1080	8-phi17
18 L/rev	1.5	24	280	195	420	380	320	420x420	370	320x320	420	1100	8-phi17
20 L/rev	1.5	24	280	210	440	400	340	440x440	390	340x340	440	1150	8-phi17
26 L/rev	2.2	24	280	310	500	460	400	510x510	450	400x400	520	1300	12-phi17
30 L/rev	3	24	280	350	560	500	440	550x550	495	440x440	550	1350	12-phi17
40 L/rev	3	24	280	450	620	558	500	620x620	558	500x500	620	1500	12-phi17
50 L/rev	3	24	280	500	650	600	540	650x650	600	540x540	650	1600	12-phi17

Square flange layouts can be customized. Use this table as a volume and drive selection reference; confirm square flange drawing before order.

Selection information to confirm

Material name, particle size, bulk density, moisture and temperature.
Required capacity, pressure difference, conveying method and installation direction.
Body material, seal material, flange standard, actuator type and control requirement.
Special requirements such as wear resistance, high temperature, explosion-proof motor or inner coating.

Rotary Valve Solutions by Industry

Explore material-handling requirements and recommended FUWEI rotary valve configurations for your industry.

Quick quote

Send your requirement to FUWEI

Tell us your material, capacity, pressure, temperature and flange standard. Our engineer will help select the suitable model.

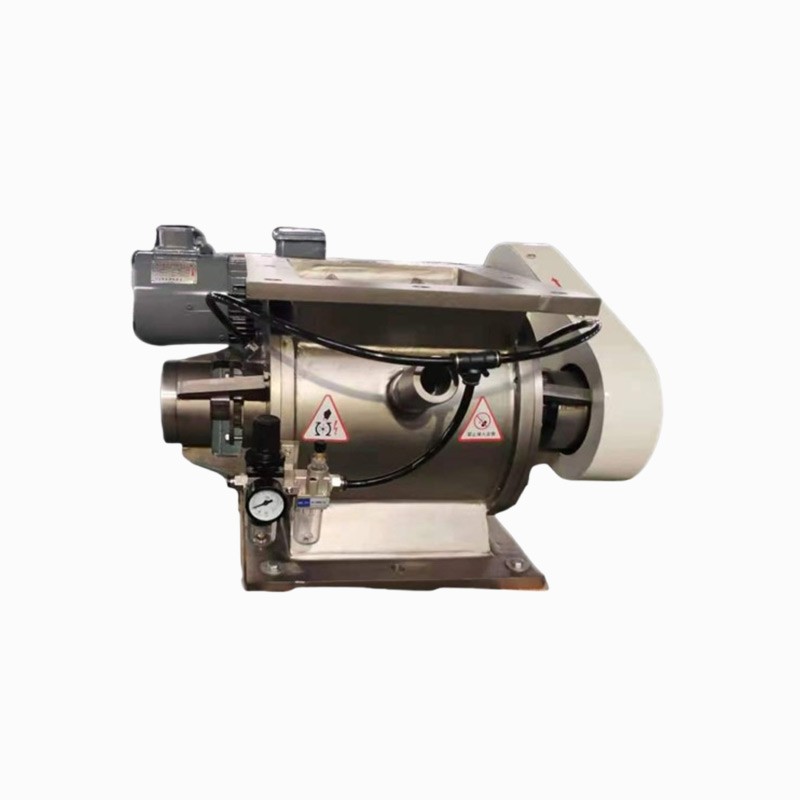

Square Flange Flow Control Uniform Discharge Stainless Steel Valve Accept Customization

ZGFWE Square Flange Rotary Valve

Square Flange Flow Control Uniform Discharge Stainless Steel Valve Accept Customization

Stainless Steel Square Flange Rotary Valve

Stainless Steel Square Flange Rotary Valve for square flange connection and uniform powder discharge. Built for stable powder discharge, airlock feeding and pneumatic conveying systems.

Product Visuals & Application Scenes

High-contrast industrial presentation aligned with the FUWEI homepage style.

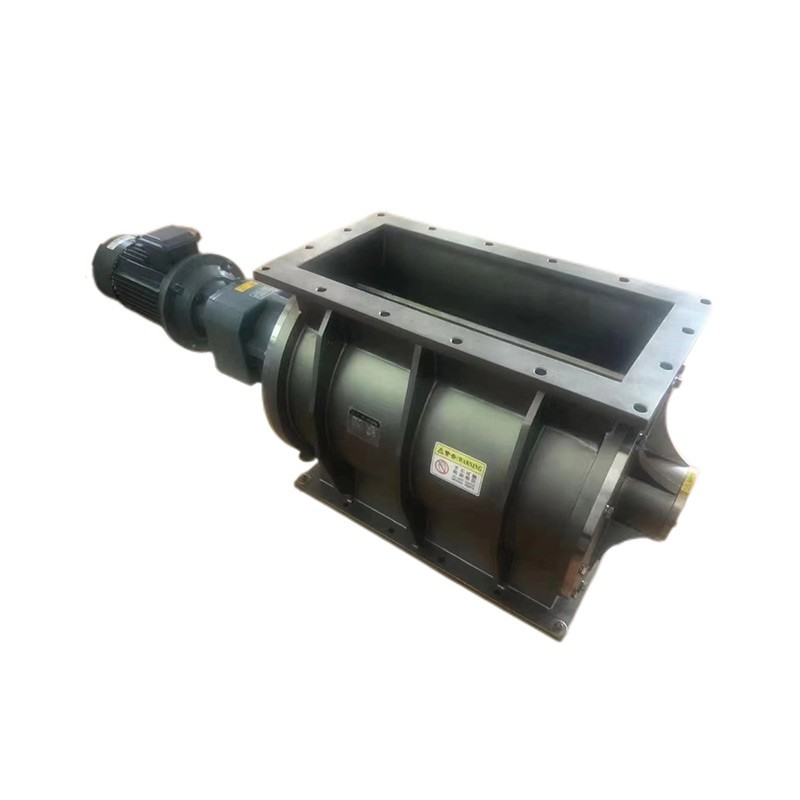

Stainless Steel Square Flange Rotary Valve Product Detail

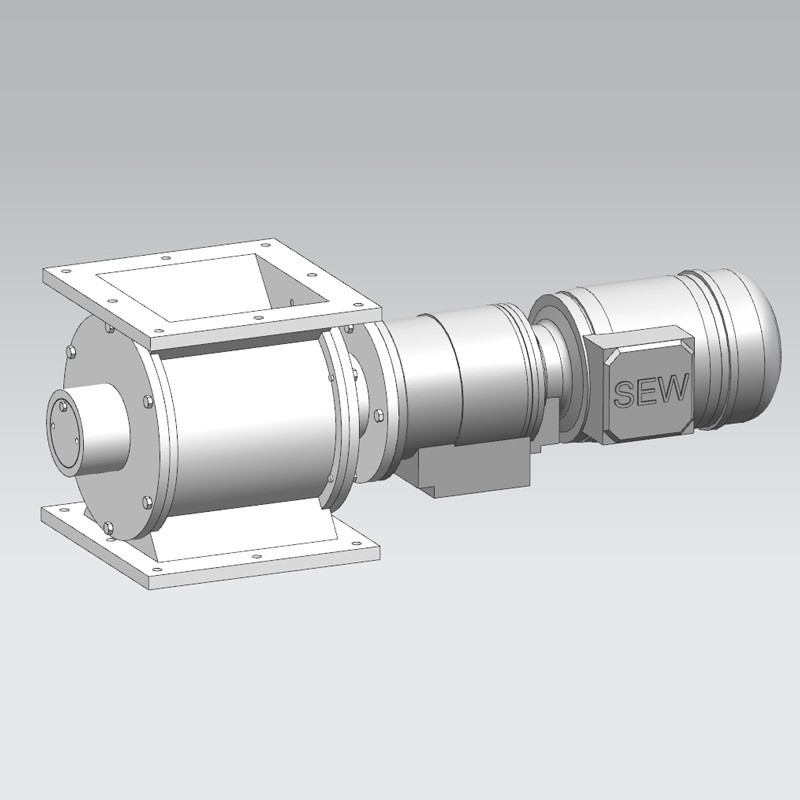

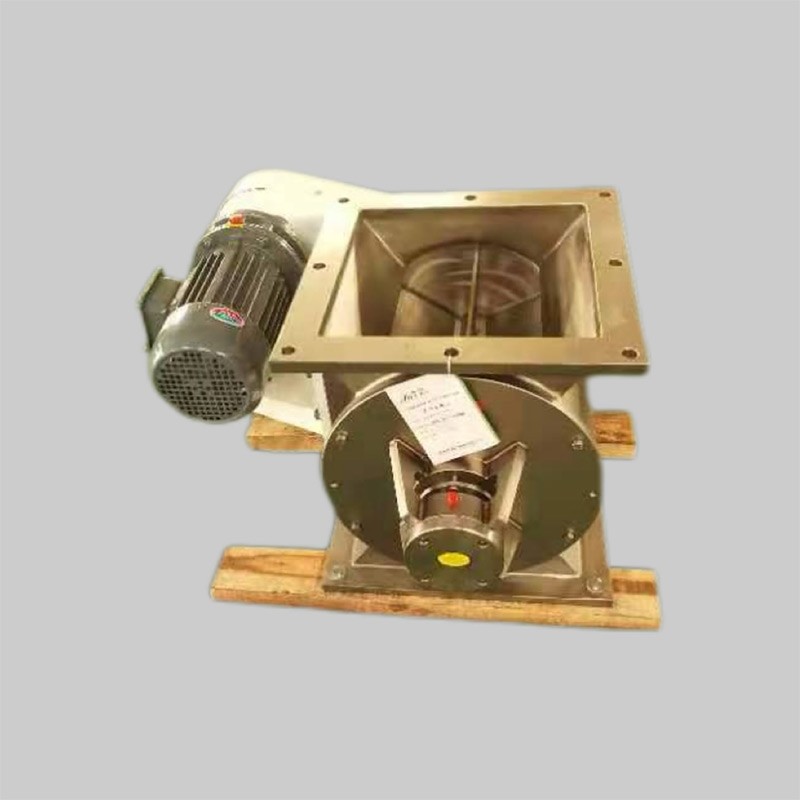

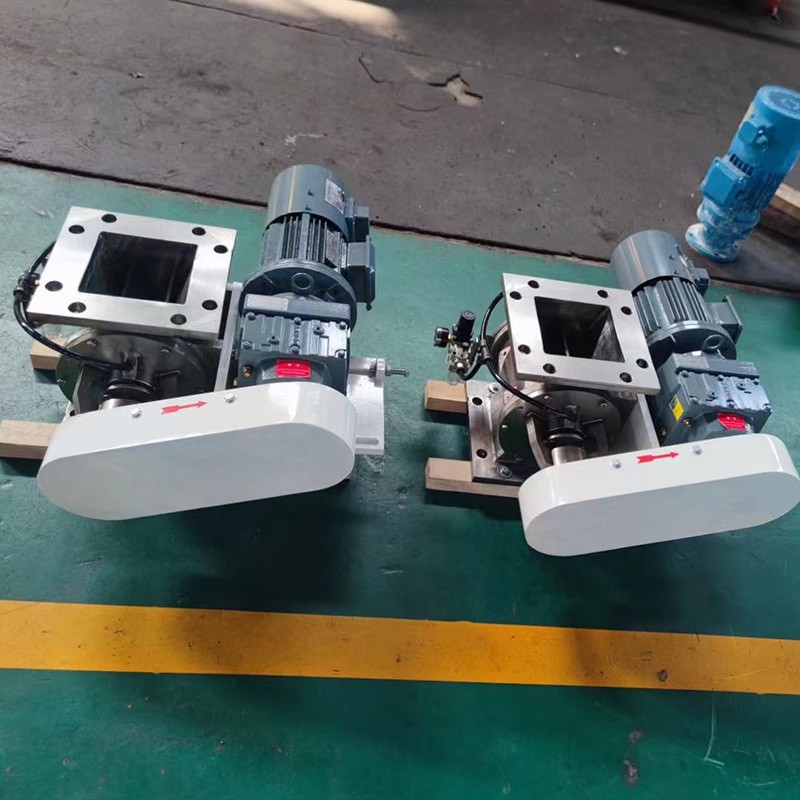

Stainless Steel Square Flange Rotary Valve Application Scene

Why choose this model

Stable discharge: continuous and quantitative powder or granular material feeding.

Airlock performance: designed for silo unloading, dust collection and conveying lines.

Chemical & Pharmaceutical Feed & Pet Food Food Processing New Energy Plastics Power & Construction

Custom material: stainless steel with sealing and surface treatment options.

Typical applications

Cement and building materials
Chemical powder and new materials
Grain, feed and food processing
Dust collection and silo discharge
Positive pressure or gravity conveying systems

Selection parameter table

Volume/rotation	Motor kW	Speed r/min	Temp C	Weight kg	A	B	C	A1	B1	C1	H	L	Hole
2 L/rev	0.75	24	280	75	240	200	150	240x240	200	150x150	240	850	8-phi11
4 L/rev	0.75	24	280	105	280	240	180	270x270	230	180x180	280	900	8-phi11
6 L/rev	0.75	24	280	110	300	260	200	290x290	250	200x200	300	930	8-phi11
8 L/rev	0.75	24	280	125	320	280	220	310x310	270	220x220	320	950	8-phi11
10 L/rev	1.1	24	280	135	340	300	240	330x330	290	240x240	340	1000	8-phi13
12 L/rev	1.1	24	280	140	360	320	260	350x350	310	260x260	360	1030	8-phi17
14 L/rev	1.1	24	280	160	380	340	280	370x370	330	280x280	380	1050	8-phi17
16 L/rev	1.1	24	280	180	400	360	300	400x400	350	300x300	400	1080	8-phi17
18 L/rev	1.5	24	280	195	420	380	320	420x420	370	320x320	420	1100	8-phi17
20 L/rev	1.5	24	280	210	440	400	340	440x440	390	340x340	440	1150	8-phi17
26 L/rev	2.2	24	280	310	500	460	400	510x510	450	400x400	520	1300	12-phi17
30 L/rev	3	24	280	350	560	500	440	550x550	495	440x440	550	1350	12-phi17
40 L/rev	3	24	280	450	620	558	500	620x620	558	500x500	620	1500	12-phi17
50 L/rev	3	24	280	500	650	600	540	650x650	600	540x540	650	1600	12-phi17

Square flange layouts can be customized. Use this table as a volume and drive selection reference; confirm square flange drawing before order.

Selection information to confirm

Material name, particle size, bulk density, moisture and temperature.
Required capacity, pressure difference, conveying method and installation direction.
Body material, seal material, flange standard, actuator type and control requirement.
Special requirements such as wear resistance, high temperature, explosion-proof motor or inner coating.

Rotary Valve Solutions by Industry

Explore material-handling requirements and recommended FUWEI rotary valve configurations for your industry.

Quick quote

Send your requirement to FUWEI

Tell us your material, capacity, pressure, temperature and flange standard. Our engineer will help select the suitable model.

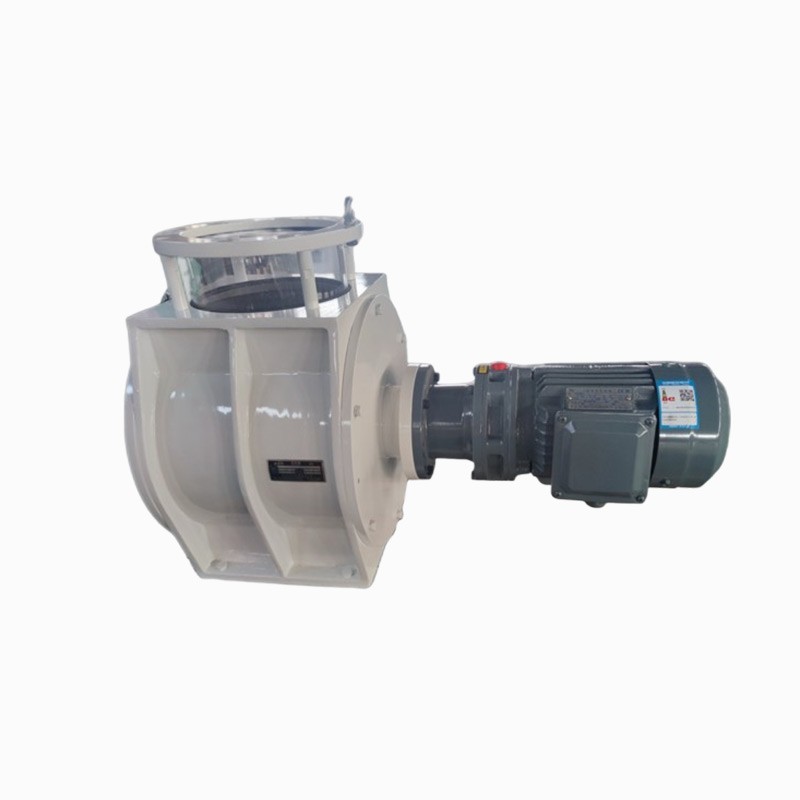

Rotary Airlock Feeder Discharge Valve Feeding System Cast Iron Accept Customization

ZGF / GF Series Rotary Airlock Valve

Rotary Airlock Feeder Discharge Valve Feeding System Cast Iron Accept Customization

Cast Iron Rotary Airlock Feeder

Cast Iron Rotary Airlock Feeder for economical rotary feeding and airlock discharge. Built for stable powder discharge, airlock feeding and pneumatic conveying systems.

Product Visuals & Application Scenes

High-contrast industrial presentation aligned with the FUWEI homepage style.

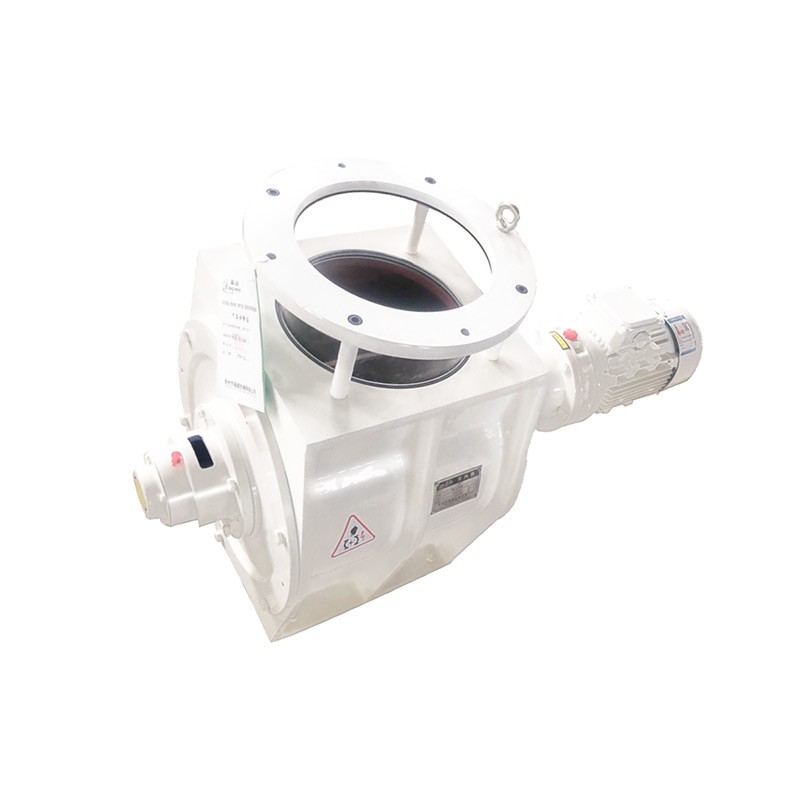

Cast Iron Rotary Airlock Feeder Product Detail

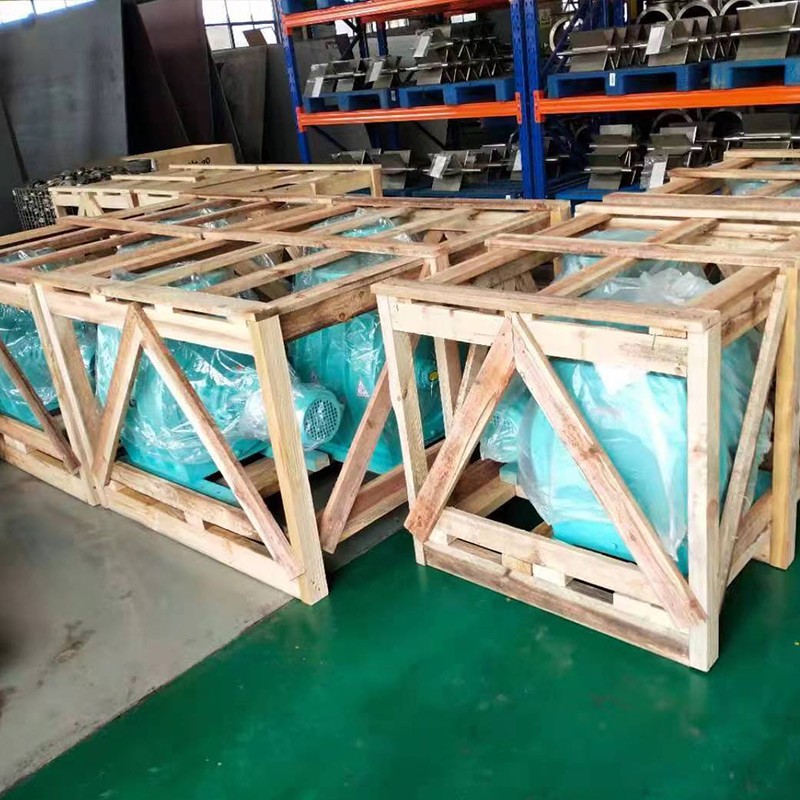

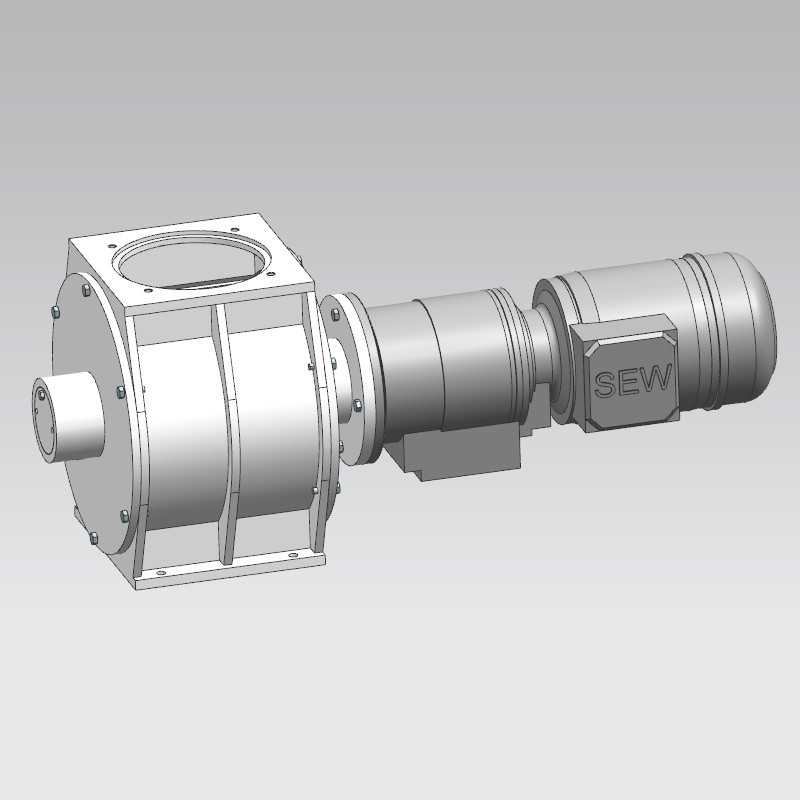

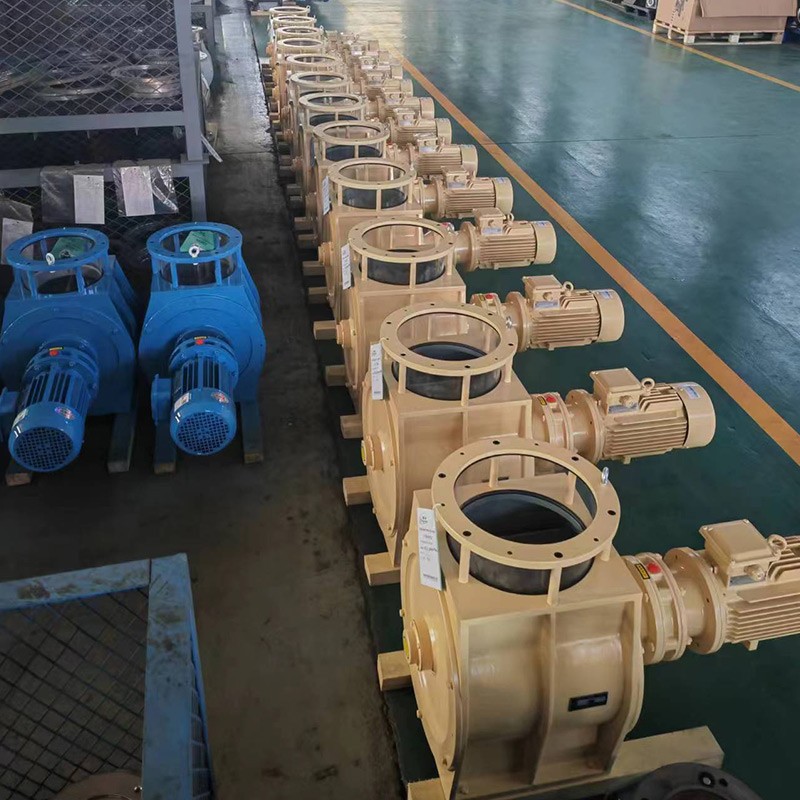

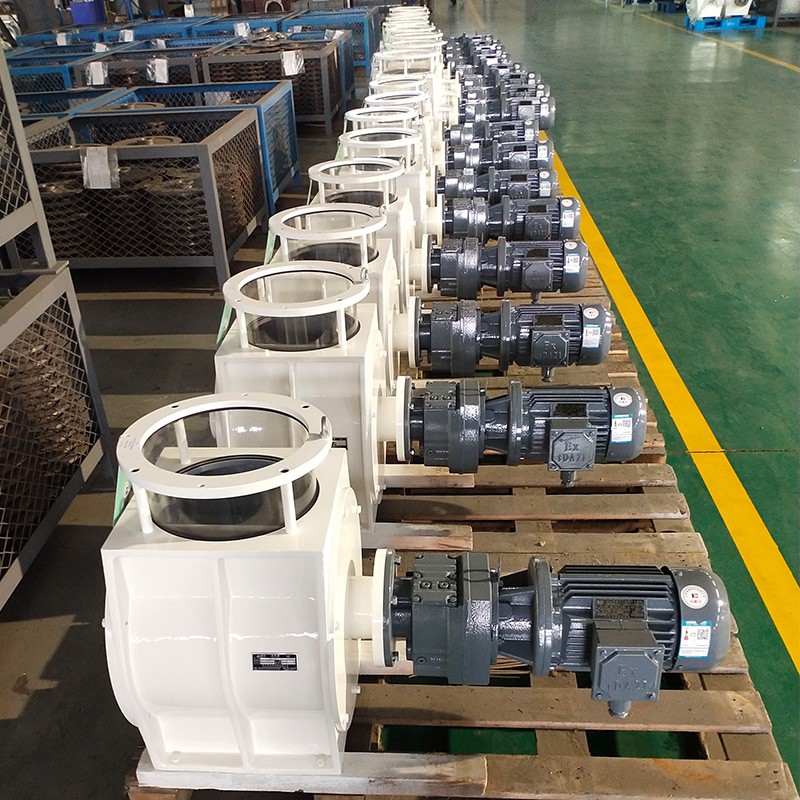

Cast Iron Rotary Airlock Feeder Application Scene

Why choose this model

Stable discharge: continuous and quantitative powder or granular material feeding.

Airlock performance: designed for silo unloading, dust collection and conveying lines.

Chemical & Pharmaceutical Feed & Pet Food Food Processing New Energy Plastics Power & Construction

Custom material: cast iron with sealing and surface treatment options.

Typical applications

Cement and building materials
Chemical powder and new materials
Grain, feed and food processing
Dust collection and silo discharge
Positive pressure or gravity conveying systems

Selection parameter table

ZGF parameter table

Model	Volume/rotation	A	B	C	L	H	D1	D2	D3	b1	b2	h	M	N	S	F	d	Hole
2.8L	2.8L/r	165	120	190	180	140	120	190	160	620	260	360	120	150	315	45	25	4-phi9
5L	5L/r	190	140	220	210	160	150	220	190	650	300	400	140	180	345	45	25	4-phi9
7L	7L/r	255	160	250	230	175	170	240	210	710	330	430	175	200	365	45	25	4-phi9
9L	9L/r	250	190	275	255	190	190	260	235	740	360	460	200	220	385	45	25	4-phi9
12L	12L/r	275	210	310	275	205	210	270	255	780	380	510	220	240	410	45	25	6-phi11
16L	16L/r	310	250	340	320	225	250	320	300	840	410	550	260	280	430	45	25	6-phi11
25L	25L/r	345	270	390	320	225	240	320	280	860	410	550	260	260	-	-	-	6-phi11

Dimensions are restored from the catalog image; final flange and hole pattern can be confirmed by project drawing.

GF parameter table

Model	Volume/rotation	A	B	C	L	H	D1	D2	D3	b1	b2	h	M	N	S	F	d	Hole
6L	6L/r	165	120	190	180	140	120	190	160	620	260	360	120	150	315	45	25	4-phi9
8L	8L/r	190	140	220	210	160	150	220	190	650	300	400	140	180	345	45	25	4-phi9
10L	10L/r	255	160	250	230	175	170	240	210	710	330	430	175	200	365	45	25	4-phi9
12L	12L/r	250	190	275	255	190	190	260	235	740	360	460	200	220	385	45	25	4-phi9
16L	16L/r	275	210	310	275	205	210	270	255	780	380	510	220	240	410	45	25	6-phi11
24L	24L/r	310	250	340	320	225	250	320	300	840	410	550	260	280	430	45	25	6-phi11
25L	25L/r	345	270	390	320	225	240	320	280	860	410	550	260	260	-	-	-	6-phi11

GF series follows the catalog dimension structure with different per-turn volume range.

Selection information to confirm

Material name, particle size, bulk density, moisture and temperature.
Required capacity, pressure difference, conveying method and installation direction.
Body material, seal material, flange standard, actuator type and control requirement.
Special requirements such as wear resistance, high temperature, explosion-proof motor or inner coating.

Rotary Valve Solutions by Industry

Explore material-handling requirements and recommended FUWEI rotary valve configurations for your industry.

Quick quote

Send your requirement to FUWEI

Tell us your material, capacity, pressure, temperature and flange standard. Our engineer will help select the suitable model.

Rotating Discharge Control Discharge Flow Stainless Steel Valve Acceptable Customization

ZGF / GF Series Rotary Airlock Valve

Rotating Discharge Control Discharge Flow Stainless Steel Valve Acceptable Customization

Stainless Steel Rotary Airlock Valve

Stainless Steel Rotary Airlock Valve for standard rotary airlock feeding and controlled discharge. Built for stable powder discharge, airlock feeding and pneumatic conveying systems.

Product Visuals & Application Scenes

High-contrast industrial presentation aligned with the FUWEI homepage style.

Stainless Steel Rotary Airlock Valve Product Detail

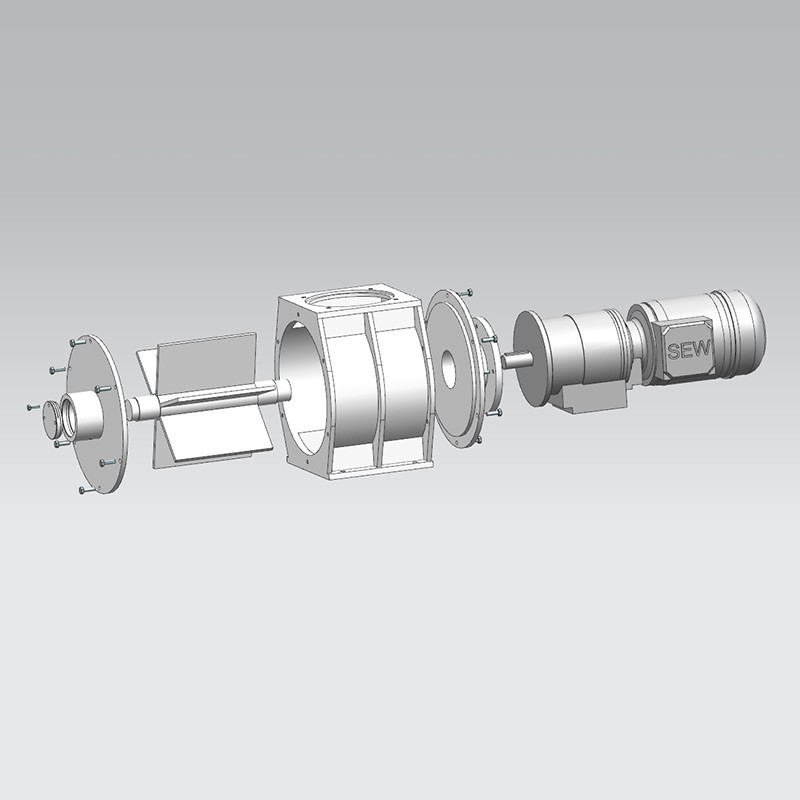

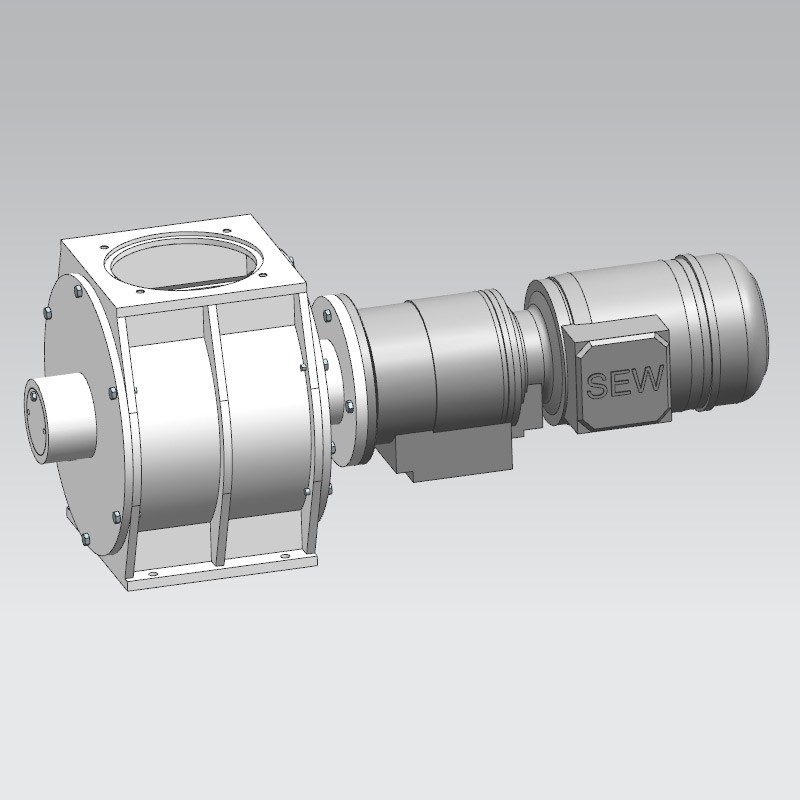

Stainless Steel Rotary Airlock Valve Application Scene

Why choose this model

Stable discharge: continuous and quantitative powder or granular material feeding.

Airlock performance: designed for silo unloading, dust collection and conveying lines.
